PavoSlim 240C
A folding 2x2 RGBWW LED panel that collapses to a 2x1 footprint for transport. It runs from AC or V-Mount batteries and suits film, video and photo crews who need portable, wirelessly controllable colour lighting.
- Folds from 2x2 to a 2x1 footprint for transport
- RGBWW, 2700K–7500K CCT with ±150 G/M adjustment
- CRI 96, TLCI 97 average; flicker-free
- AC or V-Mount battery power via Control Unit
- CRMX, DMX/RDM, Bluetooth/NANLINK and 2.4G control
- Softbox, grid, 2 diffusers, mounts and case included
Fotos
8Anzeigen
Noch keine Anzeigen für dieses Modell
Wenn jemand ein PavoSlim 240C verkauft, erscheinen hier die Anzeigen und der Verkaufsverlauf.
So eins verkaufenBeschreibung

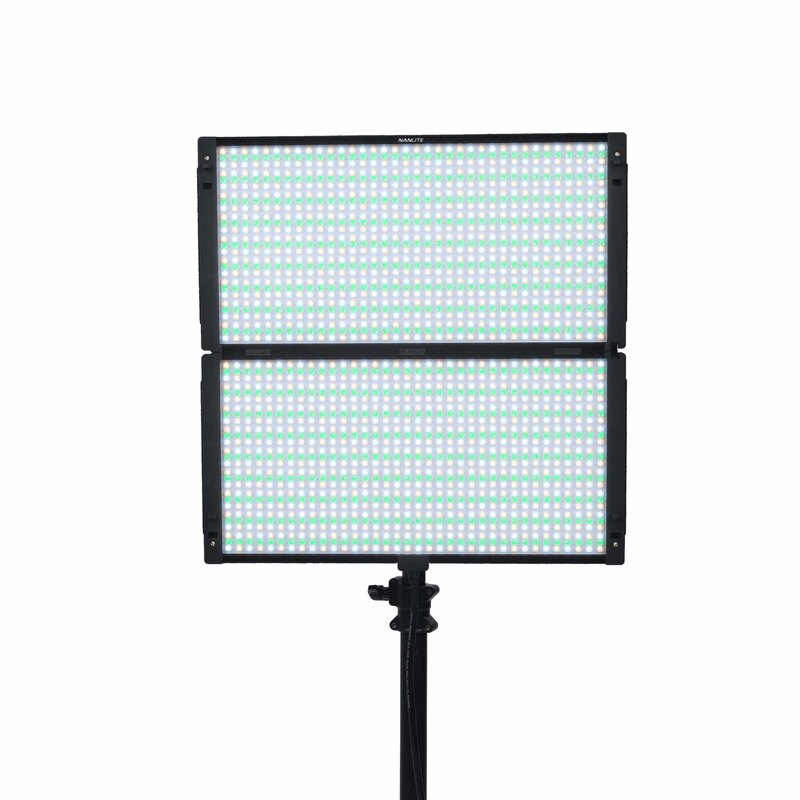

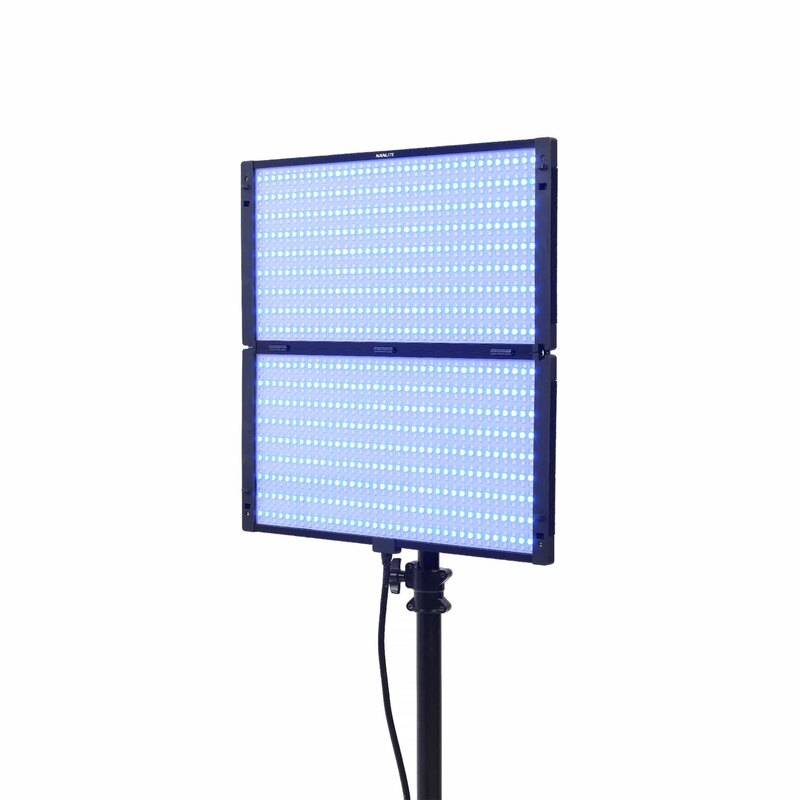

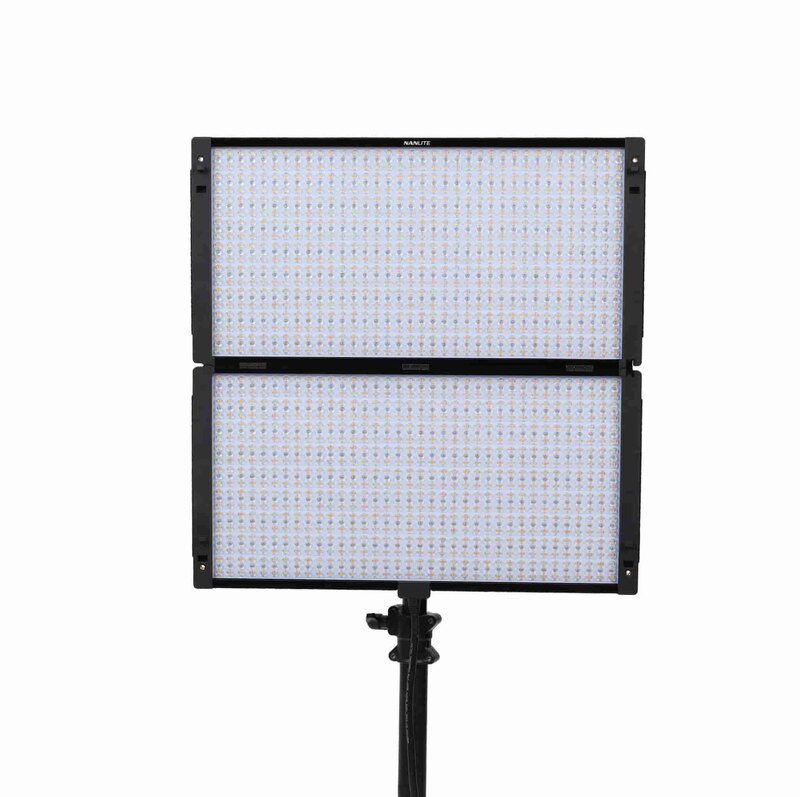

The PavoSlim 240C is a thin, fanless, metal-bodied LED panel with RGBWW emitters. It unfolds to roughly 24 x 24 inches and folds to half that size. The panel stays lit until fully closed. It covers 2700K–7500K with ±150 green/magenta adjustment, full-colour output, 151 gel filter presets and a set of lighting effects including Candle/Fire, Storm, Police Car and Paparazzi. Dimming runs 0–100%. Measured colour quality is CRI 96, TLCI 97 and TM-30 Rf 94 on average, and the output is described as flicker-free at high frame rates.
A separate Control Unit carries the buttons, knob and screen, so the panel can sit high on a stand while the controls and batteries stay within reach. The unit has two V-Mount battery plates, and the system can also run from AC 100–240V. Rated power is 260W. At 1 m and 5600K the panel measures 24970 lux.

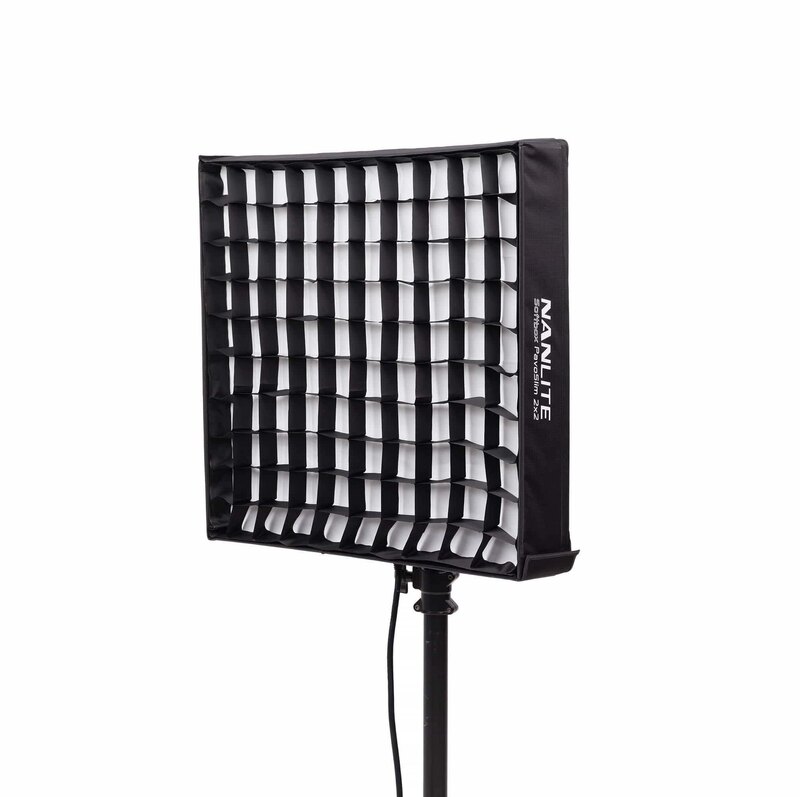

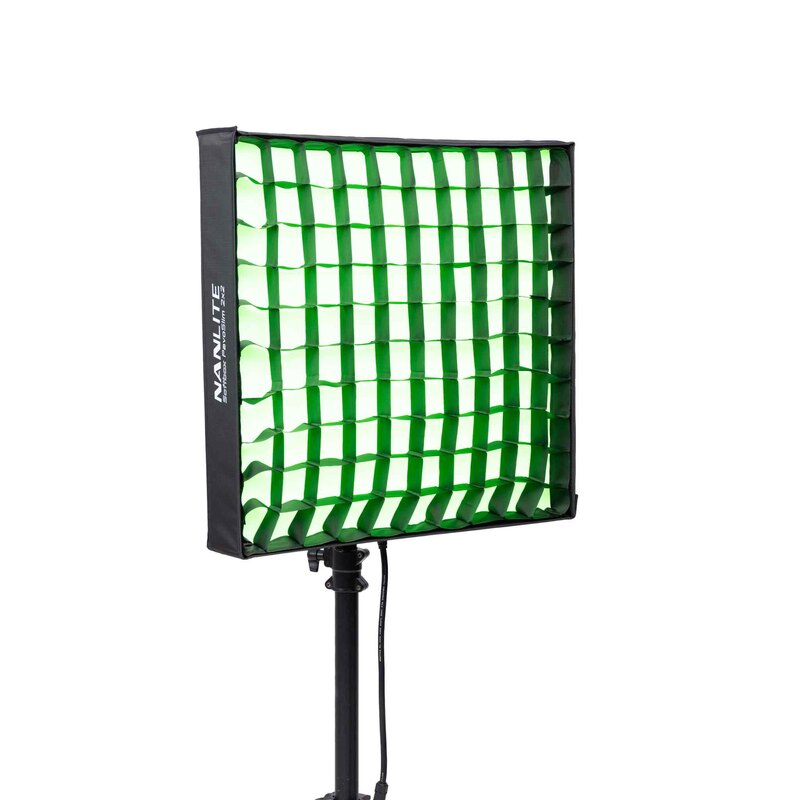

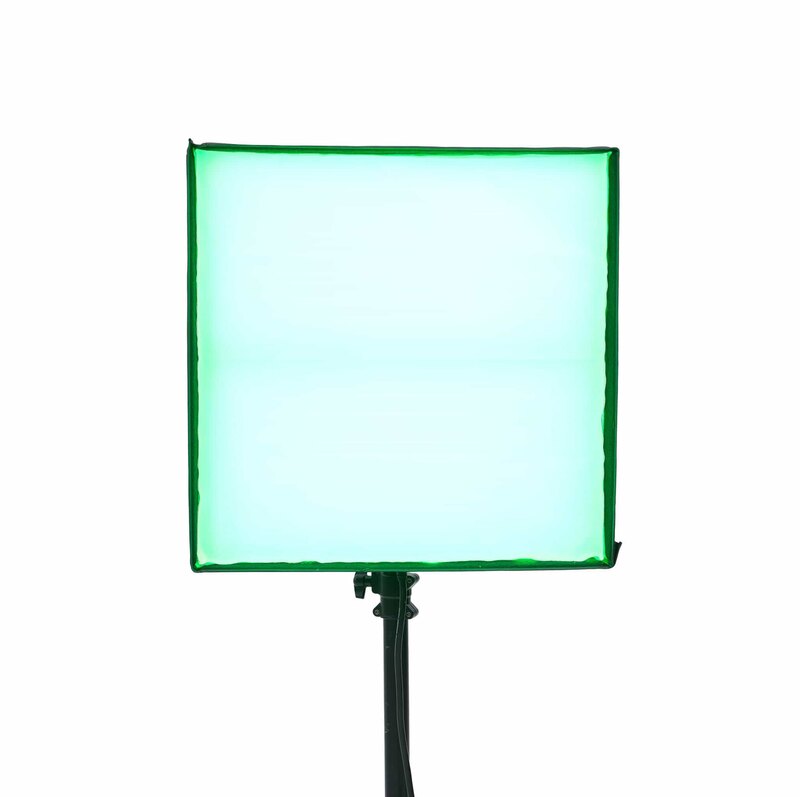

Control options are the on-board interface, built-in LumenRadio CRMX, DMX/RDM through a locking metal port, Bluetooth with the NANLINK app, and 2.4G for the WS-RC-C2 remote or WS-TB-1 Transmitter Box, which are sold separately. The kit includes a folding softbox, two diffusers, an eggcrate grid, a baby-pin holder, a swivel holder, a quick-release clamp, cables and a padded carrying bag.
Video
Technische Daten
- Marke
- Nanlite
- Modell
- PavoSlim 240C
- Kategorie
- Licht und Bühne
Light output
- LED type
- RGBWW
- CCT range
- 2700K-7500K
- G/M adjustment
- ±150
- Dimming
- 0–100%
- Beam angle
- 60°
- Illuminance @ 1 m, 5600K
- 24970 lux / 2320 fc
- Illuminance @ 1 m, 3200K
- 22770 lux / 2115 fc
- Illuminance @ 3 m, 5600K
- 3441 lux / 320 fc
Colour quality
- CRI
- Average 96
- TLCI
- Average 97
- SSI 3200K
- 83
- SSI 5600K
- 74
- TM-30 Rf (average)
- 94
- TM-30 Rg (average)
- 100
Power
- Rated power
- 260W
- AC input
- AC 100-240V 50/60Hz
- DC input
- DC 48V/5.6A
- Battery input
- DC 14.4-26V
- Operating temperature
- -20℃-45℃
Connectivity
- Wireless DMX
- LumenRadio CRMX
- Wired DMX
- DMX/RDM via locking metal port
- Bluetooth
- Nanlink mobile app
- 2.4G
- WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box
Physical
- Head dimensions, unfolded
- 23.96 × 23.70 × 1.13" (60.87 × 60.21 × 2.86 cm)
- Head dimensions, folded
- 12.54 × 23.7 × 1.5" (31.84 × 60.21 × 3.82 cm)
- Control Unit dimensions
- 6.01 × 4.39 × 11.14" (15.26 × 11.15 × 28.3 cm)
- Head weight
- 8.05 lbs (3.65 kg)
- Control Unit weight
- 6.08 lbs (2.76 kg)
In the box
- Panel and control
- 1x PavoSlim 240C panel, 1x Control Unit with 2 V-Mount battery plates
- Mounts
- 1x Baby-Pin Holder, 1x Swivel Holder, 1x Quick-Release Clamp
- Cables
- 1x DC cable 16.4' (5 m), 1x AC cable 14.7' (4.5 m)
- Light shaping
- 1x Folding Softbox, 2x Diffusers (2.5 stop, 1.5 stop), 1x Eggcrate Grid
- Other
- 1x Padded Carrying Bag, 1x User Manual
- Warranty
- 2-year limited, 3-year with online registration
