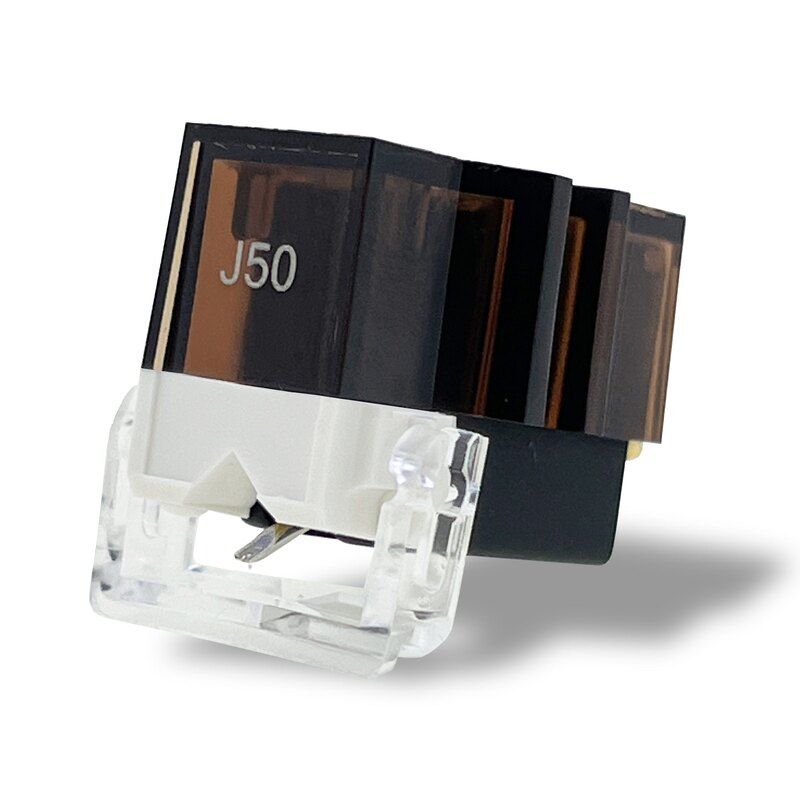

Jico J50
Replacement stylus for Shure moving-magnet cartridges, with a solid nude conical tip of 0.7 mil on a JICO Type S cantilever. It suits vinyl listeners who need a playback-only stylus within a 1.5–3.0 g tracking range.
- Moving magnet (MM) cartridge type
- Solid nude conical tip, 0.7 mil
- JICO Type S cantilever
- Tracking force 1.5–3.0 g
- Needle life about 200 hours
Fotos
5Anzeigen
Noch keine Anzeigen für dieses Modell
Wenn jemand ein Jico J50 verkauft, erscheinen hier die Anzeigen und der Verkaufsverlauf.
So eins verkaufenBeschreibung
The J50 IMP NUDE is a replacement stylus assembly in the JICO catalogue, listed under the Shure category. It is made for moving-magnet (MM) cartridges and is intended for listening and playback only. The stylus has a solid nude conical tip of 0.7 mil, mounted on a JICO Type S cantilever.
The listed playback frequency range is 20 Hz to 20 kHz. Channel separation is 20 dB, and channel balance is 1.5 or less. Recommended tracking force is 1.5 to 3.0 g. Rated needle life is about 200 hours.
The cartridge uses a standard 1/2 inch tonearm mount. Recommended load resistance is 47 kΩ and DC resistance is about 800 Ω. Compliance is given as L8.5/V7.8. The unit weighs about 5.6 g including the needle and is about 20 mm high.
Technische Daten
- Marke
- Jico
- Modell
- J50
- Kategorie
- DJ-Equipment › Tonabnehmer und Nadeln
Audio
- Playback frequency range
- 20Hz~20kHz
- Channel balance
- 1.5 or less
- Channel separation
- 20db
- Compliance
- L8.5/V7.8
Electrical
- Load resistance
- 47kΩ
- DC resistance
- about 800Ω
Cartridge
- Cart type
- MM
- Type
- Moving Magnet
- Cantilever
- JICO Type S
- Tip shape
- SOLID Conical tip
- Tip
- NUDE Conical Stylus
- Tip size
- 0.7mil
- Use
- Listening/Playback
Tracking
- Tracking force
- 1.5~3.0g
- Needle life
- about 200 hours
Connectivity
- Tonearm mount
- 1/2 inch standard mount
Physical
- Weight
- about 5.6g (including needle)
- Height
- about 20mm (including needle)
Identification
- JICO number
- Ae10278
- Category
- JICO, Shure
