C55
The C55 is a five-channel analog power amplifier from Hegel's C5 series, built for rack installation in home theater, multi-room, studio or restaurant systems. It delivers 150 W per channel into 8 ohms and suits installers and enthusiasts who need several channels in one chassis.
- 5 channels, 150 W each into 8 ohms (300 W at 4 ohms, 600 W at 2 ohms)
- SoundEngine2 class A/B design, damping factor above 2000
- XLR and RCA inputs on every channel
- Gain (23/29 dB) and phase (0/180) switchable per channel
- Trigger input and output for daisy chaining
- 3U rack-mount chassis with adjustable rear ears, 37.5 kg
Fotos
6Anzeigen
Noch keine Anzeigen für dieses Modell
Wenn jemand ein C55 verkauft, erscheinen hier die Anzeigen und der Verkaufsverlauf.
So eins verkaufenBeschreibung
The C55 is the five-channel version of the C5 series, which is also offered with three or four channels. It is a class A/B power amplifier based on the SoundEngine2 error-cancelling design, run at low bias so it stays cooler and can be mounted in a 19-inch rack. Each of the five channels is rated at 150 W into 8 ohms, 300 W into 4 ohms and 600 W into 2 ohms, with a damping factor above 2000.
Integration features include individually switchable gain (23 dB or 29 dB) and individually switchable phase (0/180 degrees) for every channel. This makes it practical for 5.1 or Atmos theaters, bi-amping, active crossover setups or multi-speaker installations. Several units can be combined when more channels are required.

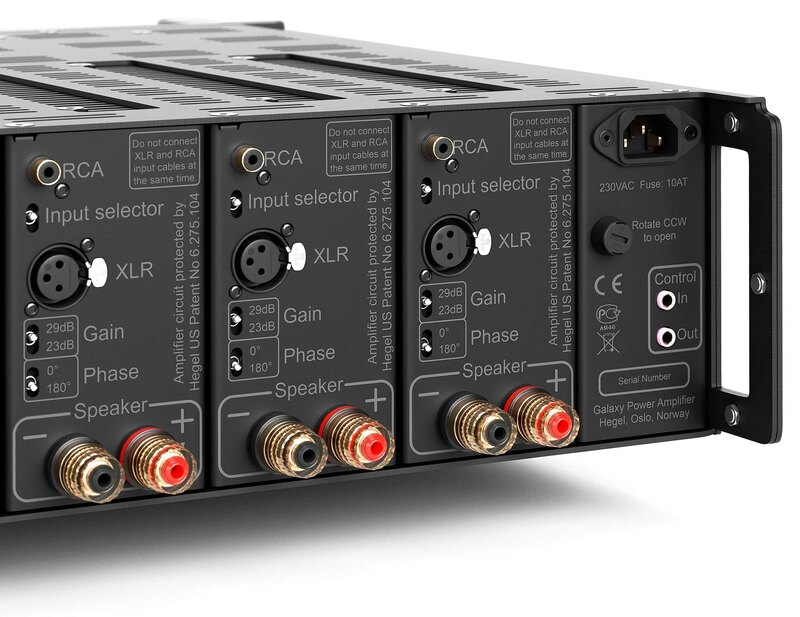

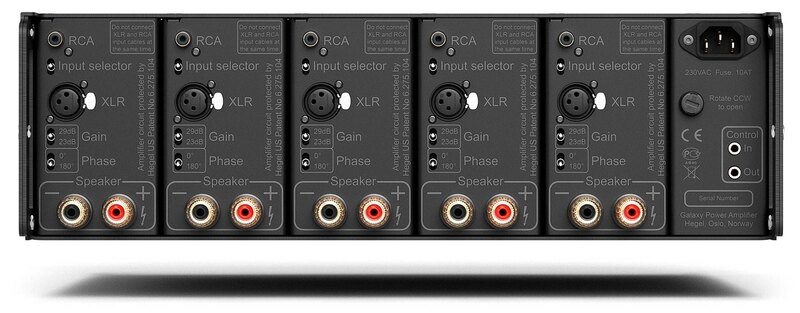

Each channel has both a balanced XLR and an unbalanced RCA input. A 3.5 mm trigger input and a trigger output allow daisy chaining and remote switching from another room. The chassis is 3U high with integrated front rack ears and adjustable, detachable rear mount ears; feet are supplied for free-standing use.
Video
Technische Daten
- Marke
- Hegel
- Modell
- C55
- Kategorie
- Hi-Fi und Heimaudio › Verstärker
Audio
- Channels
- 5
- Power output
- 5 x 150/300/600 W into 8/4/2 ohms @ 1 kHz 1% THD
- Minimum load
- 2 ohms
- Frequency response
- 5 Hz - 100 kHz
- Signal-to-noise ratio
- More than 100 dB
- Crosstalk
- Less than -100 dB
- Distortion
- Less than 0.01% @ 100 W 8 ohms 1 kHz
- Intermodulation
- Less than 0.01% (19 kHz + 20 kHz)
- Damping factor
- More than 2000 (main power output stage)
Inputs
- Analog inputs
- 5 x balanced (XLR), 5 x unbalanced (RCA)
- Control input
- 1 x mini-jack 5-12 V trigger
Outputs
- Control output
- 1 x mini-jack 11.9 V trigger out
Controls
- Gain control
- Switchable between 23 dB or 29 dB (individual)
- Phase control
- Switchable 1/180 (individual)
Power
- Mains voltage
- 100/120/230 V AC
Physical
- Dimensions (W x H x D)
- 48.2 cm x 13.2 cm x 52 cm (incl. handles, excl. feet)
- Dimensions (US)
- 18.97 in x 5.2 in x 20.47 in
- Net weight
- 37.5 kg (82 lbs)
- Gross weight
- 43 kg (95 lbs)
- Rack height
- 3U
- Special features
- Balanced and unbalanced inputs, trigger in/out, modular design, adjustable rear rack mount, gain and phase selectors
In the box
- Accessories
- Feet supplied in accessory box
