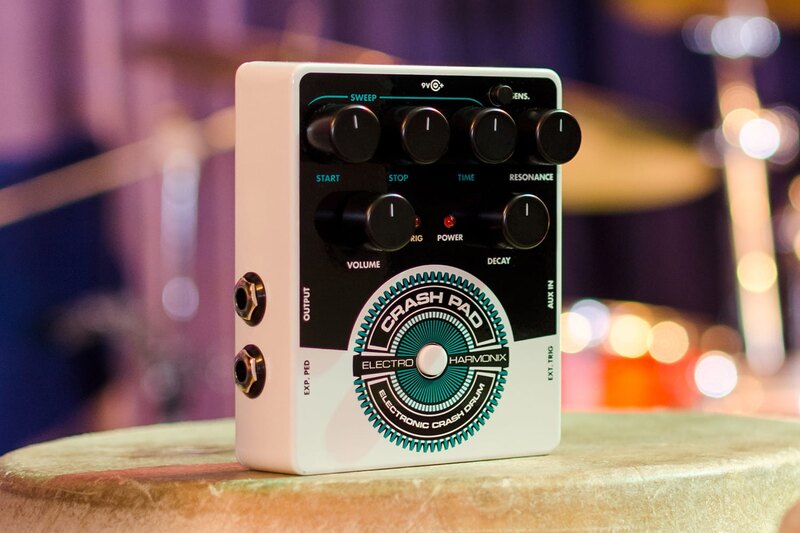

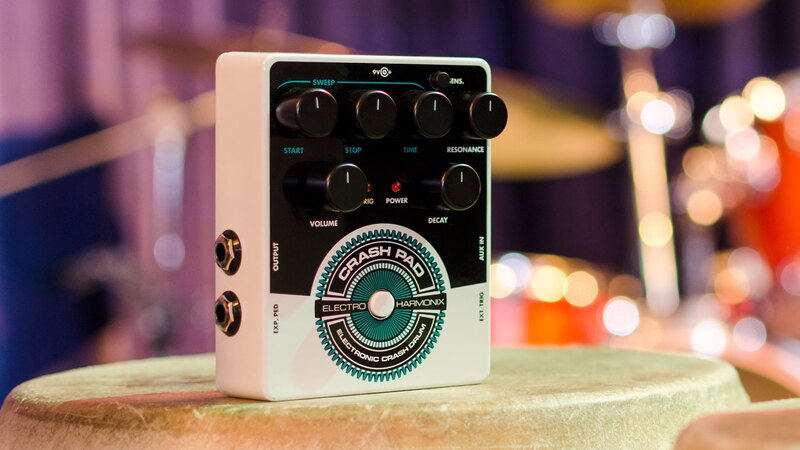

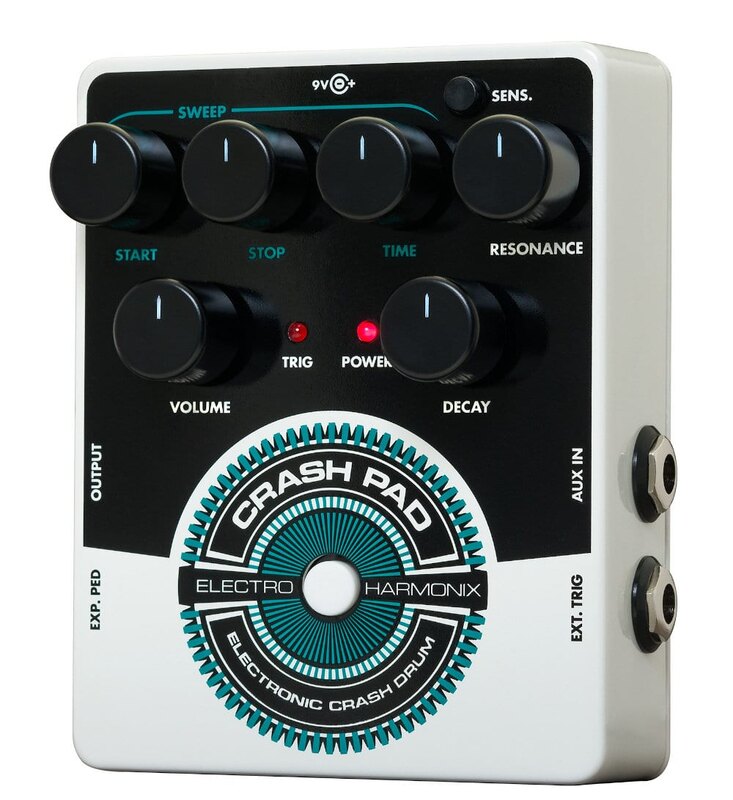

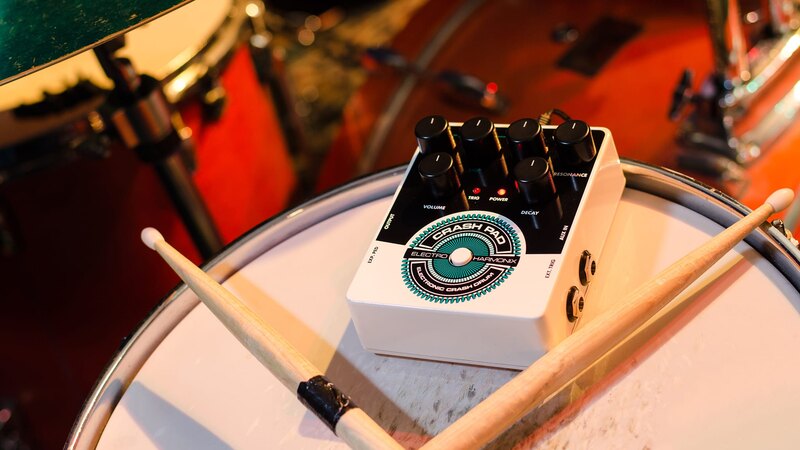

Crash Pad
Analog drum synthesizer pedal, a reissue of the 1980 original, that makes cymbal, snare and hi-hat style sounds and filter sweeps. It also runs external audio through its resonant filter, and suits players who want a compact analog percussion voice.
- Analog circuit with mono output
- Resonant low-pass filter sweep with start, stop and time controls
- Triggers by pushbutton, external non-MIDI pad or clock generator
- Aux input for processing external sounds through the filter
- EXP/CV input for real-time filter control
- Die-cast chassis, power adapter included
Fotos
5Anzeigen
Noch keine Anzeigen für dieses Modell
Wenn jemand ein Crash Pad verkauft, erscheinen hier die Anzeigen und der Verkaufsverlauf.
So eins verkaufenBeschreibung
The Crash Pad generates percussive sounds through a swept low-pass filter, from cymbal, snare and hi-hat style hits to oscillation sweeps. Start, stop, time, resonance, decay and volume knobs shape the sweep and the volume envelope. This version adds an expression pedal / CV input for real-time control of the filter.
It can be triggered with the on-board pushbutton, an external non-MIDI drum pad, or most clock generators. A sensitivity switch sets how strongly it reacts to an external trigger. An auxiliary input lets outside sound sources pass through the resonant filter. The circuit is analog and the output is mono.
All connections are 1/4" jacks: aux in, external trigger, output and a TRS expression pedal input. The unit sits in a die-cast chassis and runs from the supplied 9.6VDC 200mA power adapter, or an optional 9V battery that is not included.
Video
Technische Daten
- Marke
- Electro-Harmonix
- Modell
- Crash Pad
- Kategorie
- Effekte und Pedale
Audio
- Circuit
- Analog
- Audio
- Mono
- Filter
- Resonant low pass
Controls
- Knobs
- Start, Stop, Time, Resonance, Volume, Decay
- Trigger
- Push button
- Sensitivity
- Button, high (down) / low (up)
Inputs
- Aux in
- 1/4" jack
- External trigger
- 1/4" jack
- Expression pedal / CV
- TRS jack
Outputs
- Output
- 1/4" jack
Power
- Power supply
- 9.6VDC-200mA power adapter included
- Battery
- Optional 9V battery, not included
- Current draw
- 22mA
Physical
- Dimensions
- 4.75 x 4 x 2.25 in
- Chassis
- Die-cast
In the box
- Included
- Power adapter
General
- Year released
- 2015
- UPC
- 683274011745
