Cock Fight Plus
Fuzz and wah pedal with two selectable filters, a traditional wah-style CRY and a vowel-like TALK, plus an adjustable fuzz section. It suits guitarists who want wah and fuzz tones in one lightweight pedal. The maker lists it as discontinued in 2026.
- Two filters: CRY (wah) and TALK (vowel)
- Fuzz with DRIVE, TONE and BIAS controls
- PRE/X/POST switch places or removes the fuzz
- BOT knob for low-frequency boost
- Buffered bypass, mono signal path
- 9V battery included; optional 9.6VDC-200mA adapter
Fotos
7Anzeigen
Noch keine Anzeigen für dieses Modell
Wenn jemand ein Cock Fight Plus verkauft, erscheinen hier die Anzeigen und der Verkaufsverlauf.
So eins verkaufenBeschreibung
The Cock Fight Plus is a rocker-style pedal that combines a wah filter with a fuzz circuit. It uses a rack and pinion mechanism and a rugged, lightweight housing. A toggle switch selects between two filters: CRY, which mimics a conventional wah circuit, and TALK, which gives throaty, vowel-like sounds.

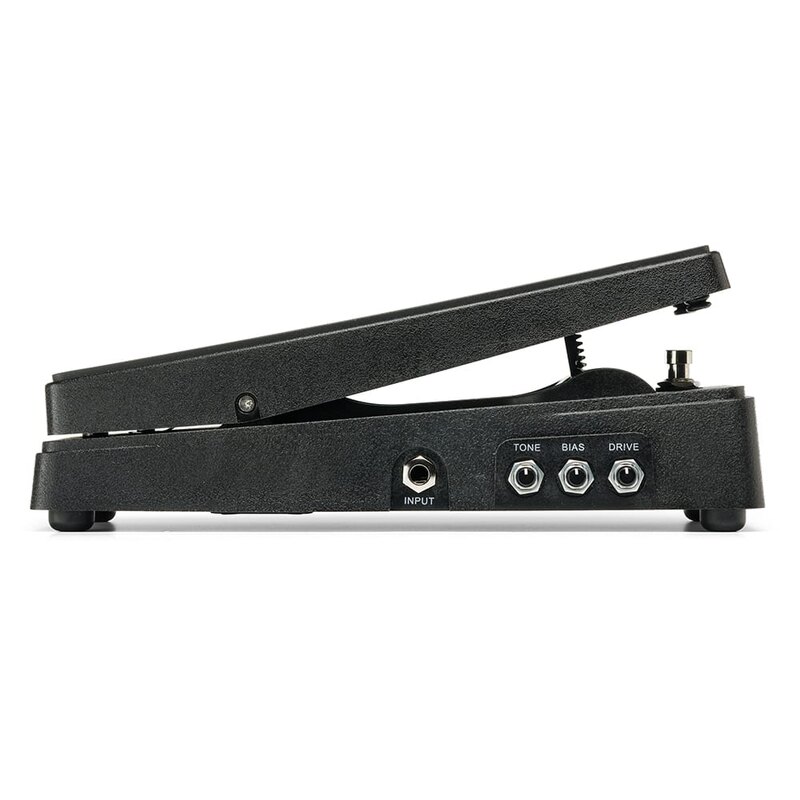

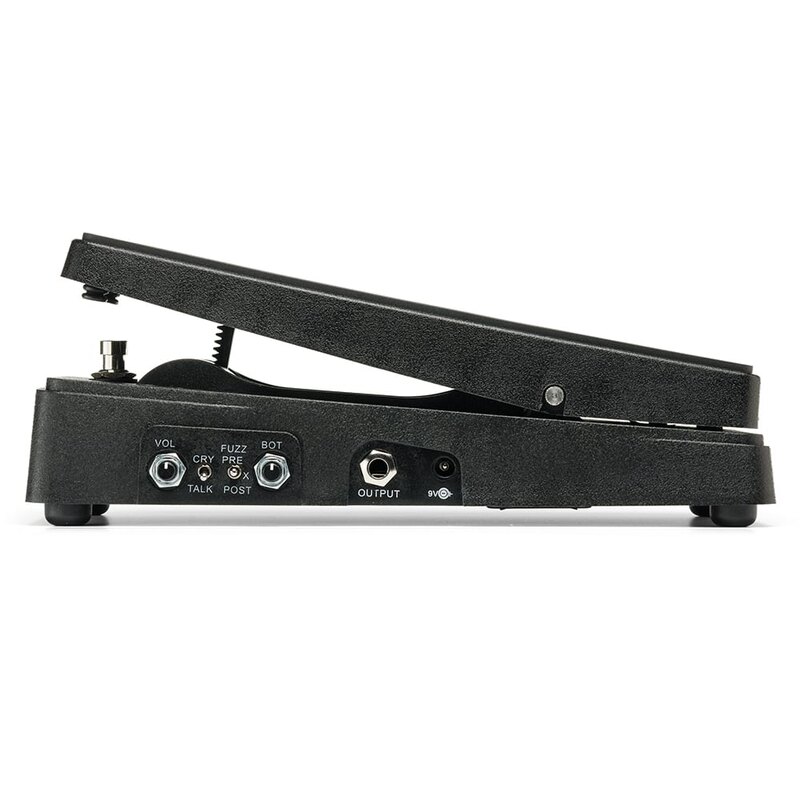

The fuzz section has DRIVE, TONE and BIAS controls. DRIVE sets the amount of fuzz, TONE moves the fuzz from dark to bright, and BIAS adjusts the bias voltage on one of the two transistors in the fuzz circuit. A PRE/X/POST switch puts the fuzz before the filter, after it, or removes it from the signal path. A BOT knob adds low-frequency boost, slightly above unity gain at full clockwise, and turns the bottom circuit off at full counterclockwise. VOL sets master output level.
The pedal is mono, with a 1/4" input and a 1/4" output. It has a buffered bypass and an analog circuit with digital control. It runs on a supplied 9V battery or on an optional 9.6VDC-200mA adapter, which is sold separately.
Video
Technische Daten
- Marke
- Electro-Harmonix
- Modell
- Cock Fight Plus
- Kategorie
- Effekte und Pedale
Audio
- Circuit
- Analog, Analog w/ Digital Control
- Bypass
- Buffered Bypass
- Audio
- Mono
- Filters
- CRY (wah) and TALK (formant)
- Fuzz routing
- PRE / X (off) / POST
Controls
- Volume
- VOL knob (master output volume)
- Bottom boost
- BOT knob (low frequency boost)
- Fuzz tone
- TONE knob (dark to bright)
- Fuzz bias
- BIAS knob
- Fuzz amount
- DRIVE knob
- Filter select
- CRY/TALK toggle switch
- Fuzz position
- FUZZ PRE/X/POST toggle switch
Connectivity
- Input
- 1/4" jack
- Output
- 1/4" jack
Power
- Power supply
- 9V battery included (optional 9.6VDC-200mA power adapter not included)
- Current draw
- 30mA
Physical
- Dimensions (in)
- 9.92 x 4.25 x 3.0
- Operating mechanism
- Rack and pinion style
In the box
- Battery
- 9V battery included
